Environment
Indoor or outdoor exposure, humidity, salt, chemicals, temperature, and expected service life.
Coating System Guide
How Should Buyers Clarify Steel Structure Coating and Corrosion Protection?
A complete coating requirement defines the exposure environment, preparation grade, primer and finish system, dry-film thickness, color, application location, repair method, inspection basis, and excluded surfaces.
Buyer Guidance
Ask the responsible project professional to select the corrosion-protection system for the actual service environment. Then translate that requirement into a coating schedule for each member type, including surface preparation, coat sequence, nominal thickness, compatibility, inspection, packing protection, and site touch-up.
System Definition
Define the complete coating system, including preparation, products, film thickness, color, application, and repair.
Preparation
Cleaning method, blast grade, profile requirement, edge treatment, and time to primer.
Coat Sequence
Primer, intermediate and finish products, compatibility, color, and nominal dry-film thickness.
Acceptance

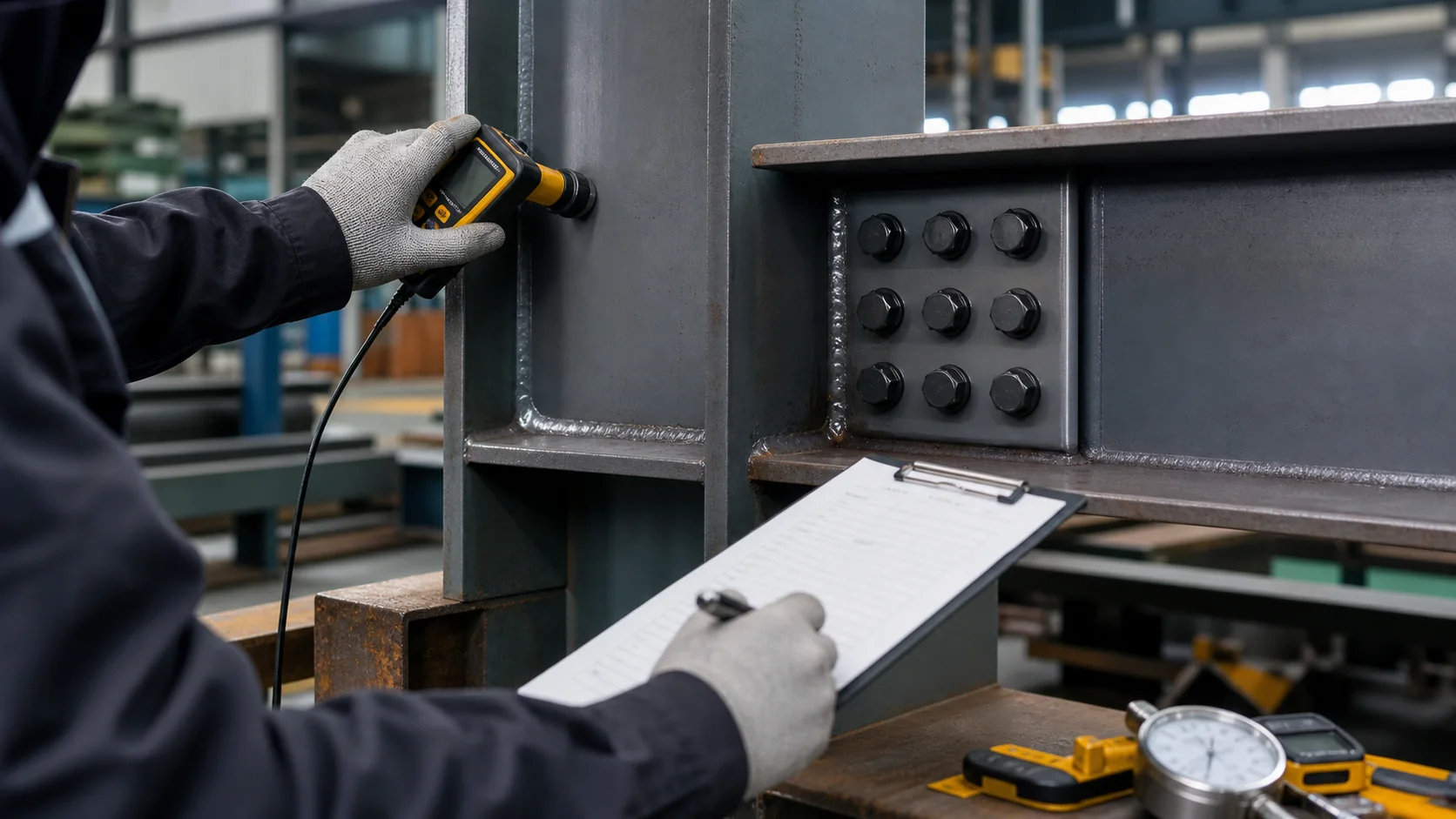

Responsible inspector, measurement method, sampling, records, repair, and final release.
Interface Map
Separate factory work, transport protection, and site repair.
| Interface | Question to close | Typical record |
|---|---|---|
| Connections | Which faying surfaces, bolt areas, and weld zones remain uncoated? | Coating schedule and masking instruction |
| Fireproofing | Is the primer compatible with the specified fireproof system? | Approved system data and responsibility note |
| Transport | How are coated members separated, lifted, and protected? | Packing method and loading record |
| Site work | Who repairs handling damage, field welds, and final coat areas? | Touch-up procedure and scope boundary |
| Inspection | Who measures preparation and thickness, and what is acceptance? | Contract-defined inspection record |
Buyer Checklist
Close the coating questions before the order is released.
Use one approved coating schedule to connect the project specification, factory application, transport protection, site repair, and acceptance records.
Coating scope to confirm
- Exposure environment, design life, and responsible specification.
- Preparation grade, profile, edge treatment, and cleanliness checks.
- Product sequence, compatibility, color, and nominal dry-film thickness.
- Excluded surfaces, masked interfaces, and fireproofing compatibility.
- Inspection method, repair procedure, packing protection, and site touch-up.
Specification Boundary
YYN coordinates the confirmed coating system supplied by the responsible project parties.
The buyer's responsible engineer or coating specialist must confirm the project exposure, design life, product system, compatibility, and acceptance criteria. YYN can pass the confirmed requirement to the matched production resource and collect the agreed China-side records.
Coating FAQ
Questions that affect cost and durability
Is paint thickness alone enough to define corrosion protection?
Surface preparation, product system, compatibility, application conditions, detailing, and repair are all part of coating performance.
Should every steel surface be painted?
Connection interfaces, embedded areas, fireproofing interfaces, galvanized items, and site weld zones require project-specific instructions.
Can coating progress records serve as final acceptance?
They support traceability, but formal acceptance follows the contract-defined inspection method and responsible party.
Evidence framework
Verify the current order with identified records, not generic claims.
Agree the required record, timing, responsible party, and acceptance route before production. Photographs support visibility but do not replace drawings, measurements, inspection, testing, or signed acceptance.

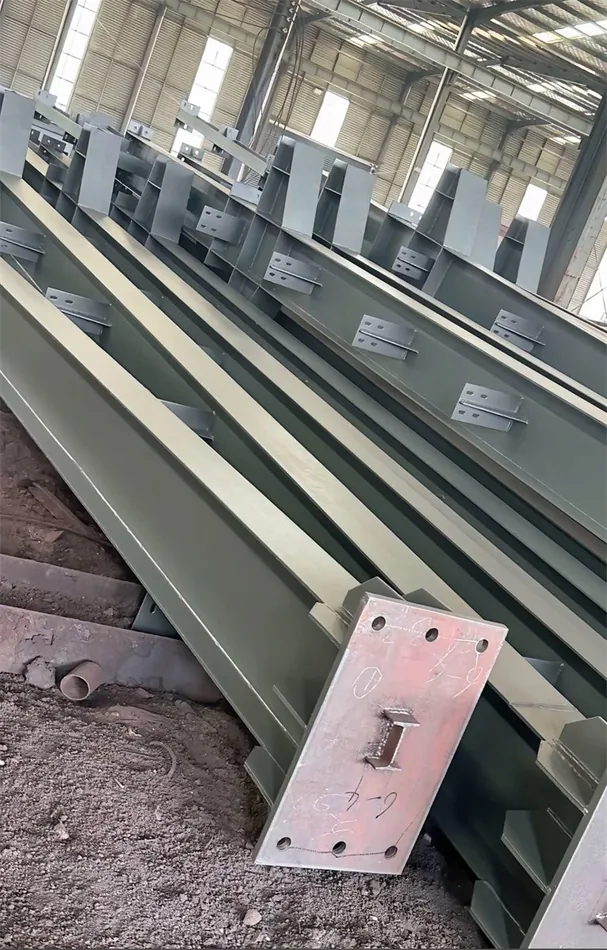

Evidence boundary: These are reference images from YYN's documented image library. Project-specific scope, measurements, inspection status, and acceptance must be confirmed through controlled order records.
